Our Products

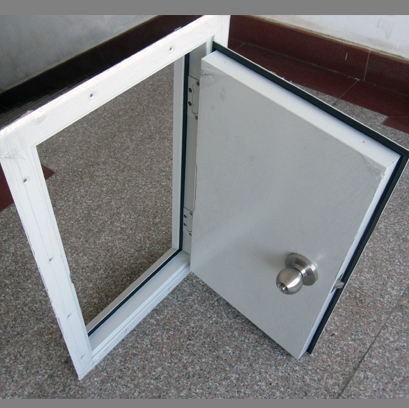

B01 Door with Rebated edge
  • Product Category: Product

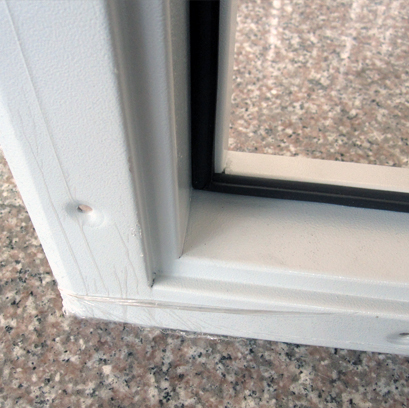

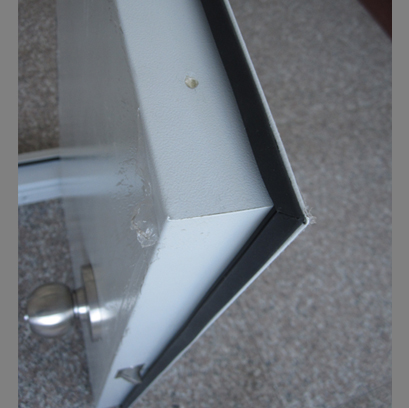

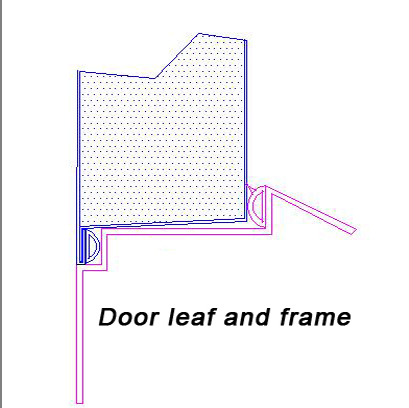

  • product description:Door leaf has rebated edge, double sealing performance, well resist the dust and water.
  • Door Specifications

    Item

    B01(820)

    B01(870)

    B01(920)

    Grade of Steel

    Glavanized Steel Plate

    Glavanized Steel Plate

    Glavanized Steel Plate

    Door Leaf

    2040*820*40mm

    2040*870*40mm

    2040*920*40mm

    General size

    2142*922*71mm

    2142*972*71mm

    2142*1022*71mm

    Wall hole size for door:

    2060*850mm

    2060*890mm

    2060*950mm

    Door Leaf plate Thickness

    0.6mm

    0.6mm

    0.6mm

    FrameThickness

    1.5 mm

    1.5 mm

    1.5 mm

    Inner Plywood



    For Door Leaf surrouding

    20*38mm

    20*38mm

    20*38mm

    For door Lock

    120*300*38mm

    120*300*38mm

    120*300*38mm

    Plywood for Door Closer

    120*400*38mm

    120*400*38mm

    120*400*38mm

    Door lock hole

    54mm

    54mm

    54mm

    Hinge

    SS304 with powdercoating

    SS304 with powdercoating

    SS304 with powdercoating

    Welded plate behind hinge for strenthen

    3mm galvanised steel.

    3mm galvanised steel.

    3mm galvanised steel.

    Seal Rubber

    EPDM

    EPDM Rubber

    EPDM Rubber

    Powder Coating

    Thickness 65~80μm

    Thickness 65~80μm

    Thickness 65~80μm

    Coating Type

    Stipple

    Stipple

    Stipple

    One pallet Qty

    15 pcs

    15 pcs

    15 pcs

    20ft Qty

    150 pcs

    150 pcs

    150 pcs

    Door leaf has rebated edge, double sealing performance, well resist the dust and water.
