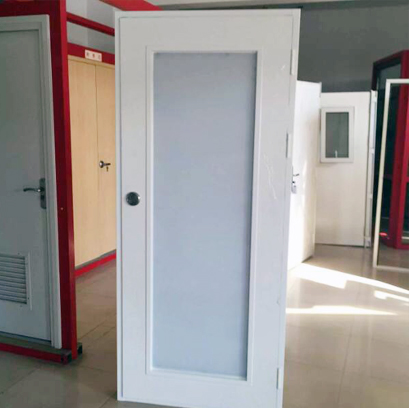

Door Specifications |
|||
|
Item |
A12(820) |
A12(870) |
A12(920) |
|
Grade of Steel |
Glavanized Steel Plate |
Glavanized Steel Plate |
Glavanized Steel Plate |
|
Door Leaf |
2040*820*40mm |
2040*870*40mm |
2040*920*40mm |
|
General size |
2142*922*71mm |
2142*972*71mm |
2142*1022*71mm |
|
Wall hole size for door: |
2060*850mm |
2060*890mm |
2060*950mm |
|
Door Leaf plate Thickness |
0.6mm |
0.6mm |
0.6mm |
|
FrameThickness |
1.5 mm |
1.5 mm |
1.5 mm |
|
Inner Plywood |
|
||
|
For Door Leaf surrouding |
20*38mm |
20*38mm |
20*38mm |
|
For door Lock |
120*300*38mm |
120*300*38mm |
120*300*38mm |
|
Plywood for Door Closer |
120*400*38mm |
120*400*38mm |
120*400*38mm |
|
Door lock hole |
￠54mm |
￠54mm |
￠54mm |
|
Hinge |
SS304 with powdercoating |
SS304 with powdercoating |
SS304 with powdercoating |
|
Welded plate behind hinge for strenthen |
3mm galvanised steel. |
3mm galvanised steel. |
3mm galvanised steel. |
|
Seal Rubber |
EPDM |
EPDM Rubber |
EPDM Rubber |
|
Powder Coating |
Thickness 65~80μm |
Thickness 65~80μm |
Thickness 65~80μm |
|
Coating Type |
Stipple |
Stipple |
Stipple |
|
One pallet Qty |
15 pcs |
15 pcs |
15 pcs |
|
20ft Qty |
150 pcs |
150 pcs |
150 pcs |
|

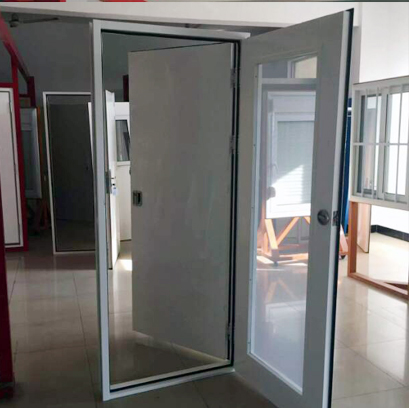

Security mesh outside , Good ventilation if only close mesh door,insect-proof. |
|||
